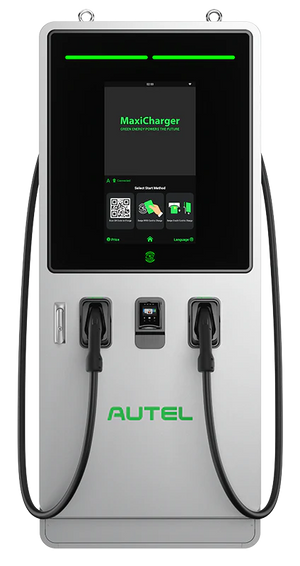

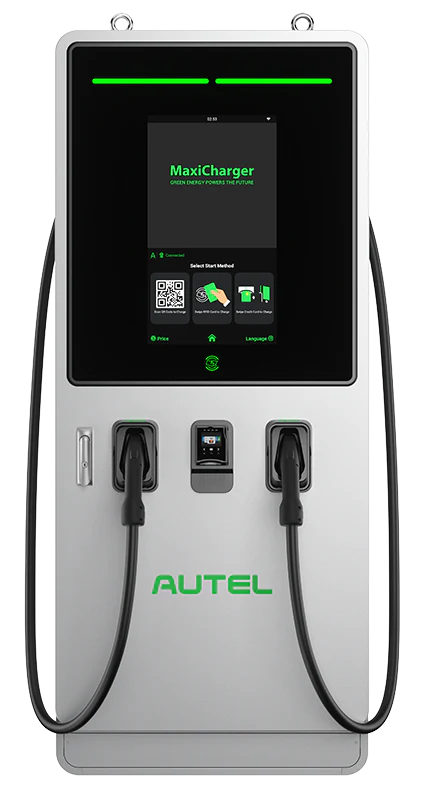

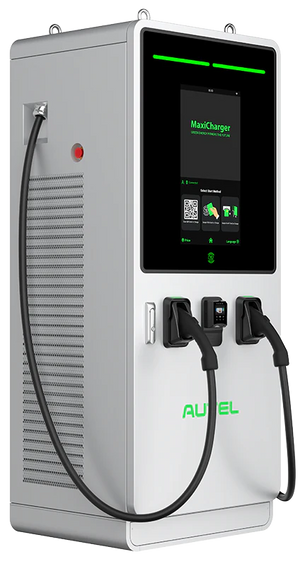

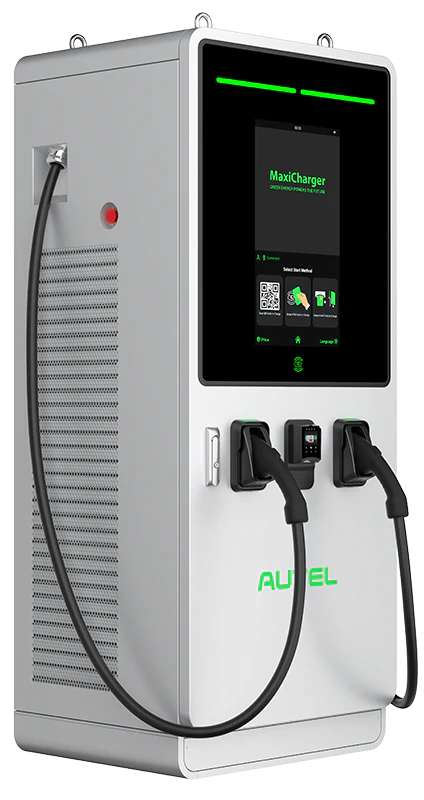

Autel Maxicharger DC Fast (60-240KW) - EV Charging Station

Autel Maxicharger DC Fast (60-240KW) - EV Charging Station

Level 3 Electric Vehicle Charger


  • Flexible Charging Port Options: Available with 2x CCS, or 1x CCS and 1x CHAdeMO connector.
  • Safe & Reliable: Certified to UL and CSA standards, NEMA 3R Rated for Outdoor Application, with Standard 2 Year Warranty.
  • 27-Inch Touchscreen Display & LED Indicator: Display Charging Statistics, Such As: SOC, Cost, kWh.
  • Easy to Install & Service: Once placed into position, Charger Maintenance can be performed by just one Qualified Person.
  • Smart Cloud Portal & OCPP Capability: Enable Site Hosts to Control the Charger and Collect Revenue.
  • Manage Any OCPP Compatible: Chargers Using Our Cloud Portal.
  • Remote Update & Diagnostics: Supported by Autel. Charge Cloud + App SaaS system, Reduce Operational Costs.
  • Plug & Charge Capable: Supports ISO 15118 Standard.
  • Dynamic Load Balancing: Balance the Load to Better Adapt to Your Infrastructure.



      Product Specification



      Part Numbers

      DCFC 60KW-120KW:

      • 60kW: UF060xxxxx; 80kW: UF080xxxxx;
      • 100kW: UF100xxxxx; 120kW: UF120xxxxx

      DCFC 140KW-240KW:

      • 140kW: UF140xxxxx; 160kW: UF160xxxxx;
      • 180kW: UF180xxxxx; 200kW: UF200xxxxx;
      • 220kW: UF220xxxxx; 240kW: UF240xxxxx

      The "xxxxx" portion of the product part number represents the various product configurations.

      Electrical

      Connector Option*

      • DCFC 60KW-120KW: 60kW: UF060xxxxx; 80kW: UF080xxxxx;
      • DCFC 140KW-240KW: Dual CCS1/CCS1 Boost, or CCS1 + CHAdeMO

      Max. Input AC Current

      DCFC 60KW-120KW:

      • 60kW: 91A; 80kW: 122A;
      • 100kW: 152A; 120kW: 182A

      DCFC 140KW-240KW:

      • 140kW: 213A; 160kW: 245A; 180kW: 270A;
      • 200kW: 305A; 220kW: 335A; 240kW: 365A

      Nominal Input AC Current

      DCFC 60KW-120KW:

      • 60kW: 83A; 80kW: 110A;
      • 100kW: 138A; 120kW: 165A

      DCFC 140KW-240KW:

      • 140kW: 181A; 160kW: 207A; 180kW: 230A;
      • 200kW: 260A; 220kW: 285A; 240kW: 310A

      Input Voltage Range: 480 V AC - 15 % to +10 % @ 60 Hz

      DC Output Voltage: CCS1: 150 to 950 V DC; CHAdeMO: 150 to 500 V DC

      Network Type: TN-S, TN-C, TN-C-S, & TT (External RCD** Required)

      AC Input Connection: 3P + PE (No Neutral)

      Protection: Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit, Insulation Monitor (IMD), & Surge Protection

      Overvoltage Category: AC Side (Input) OVC: III

      Power Factor (>50% Load): ≥ 0.98

      THDI (>50% Load): ≤ 5 %

      Peak Efficiency: ≥ 96 %

      Standby Power: 80 W

      Short Circuit Current Rating: ≥ 65 kA

      Energy Metering: Class A

      User Interface & Communication

      Connectivity: Internet Access Via 4G / Wi-Fi / Ethernet (RJ 45)

      User Authentication: QR Code, RFID, Credit Card (Optional)

      ISO 15118 Plug & Charge: Yes
      DIN 70121: Yes

      Interface: 27” LCD High-Contrast Touchscreen (15.6” Optional)

      Accessible For Wheel Chair Users: Yes

      Communications Protocols: OCPP 1.6 JSON, OCPP 2.0.1 (Can Be Upgraded Later)

      RFID Reader: ISO 14443 A+B to Part 4 & ISO/IEC 15693, Mifare, NFC, Calypso, Ultralight, PayPass, HID & More

      Emergency Button: Yes

      Software Update: OTA Update Via Web Portal

      Control And Configuration: Web Portal, On-Board Service Portal

      General Characteristics

      Protection Ratings: NEMA 3R Outdoor Use & IK-10

      Enclosure Type: Stainless Steel 430

      Operation Altitude: 6561 Ft. (6561 to 9843 Ft. with Power Derating)

      Operation Temperature: -31 °F to +131 °F (+122 °F to +131 °F with Linear Power Derating)

      Storage Temperature: -40 °F to +158 °F

      Noise Level: < 65 dB @1 m/25 °/Full Load/800 VDC

      Mounting: Free-Standing Cabinet

      Cable Length: 15 ft (Optional: 20 or 25 ft)

      Dimentions (H X W X D):

      • DCFC 60KW-120KW: 76.8" x 32.3" x 23.6" (1950 x 820 x 600mm
      • DCFC 140KW-240KW: 76.8"x 32.3"x 27.6" (1950 x 820 x 700 mm)

      Certification and Standards

      Safety and Compliance: UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16

      EMC compliance: FCC Part 15 Class A, Class B (Optional)

      Warranty: 24 months, warranty extension possible

      * CCS1 Max 200A, CCS1 Boost 300A (Max 400A) ** RCD: Residual Current Detector For Ground Fault Protection
