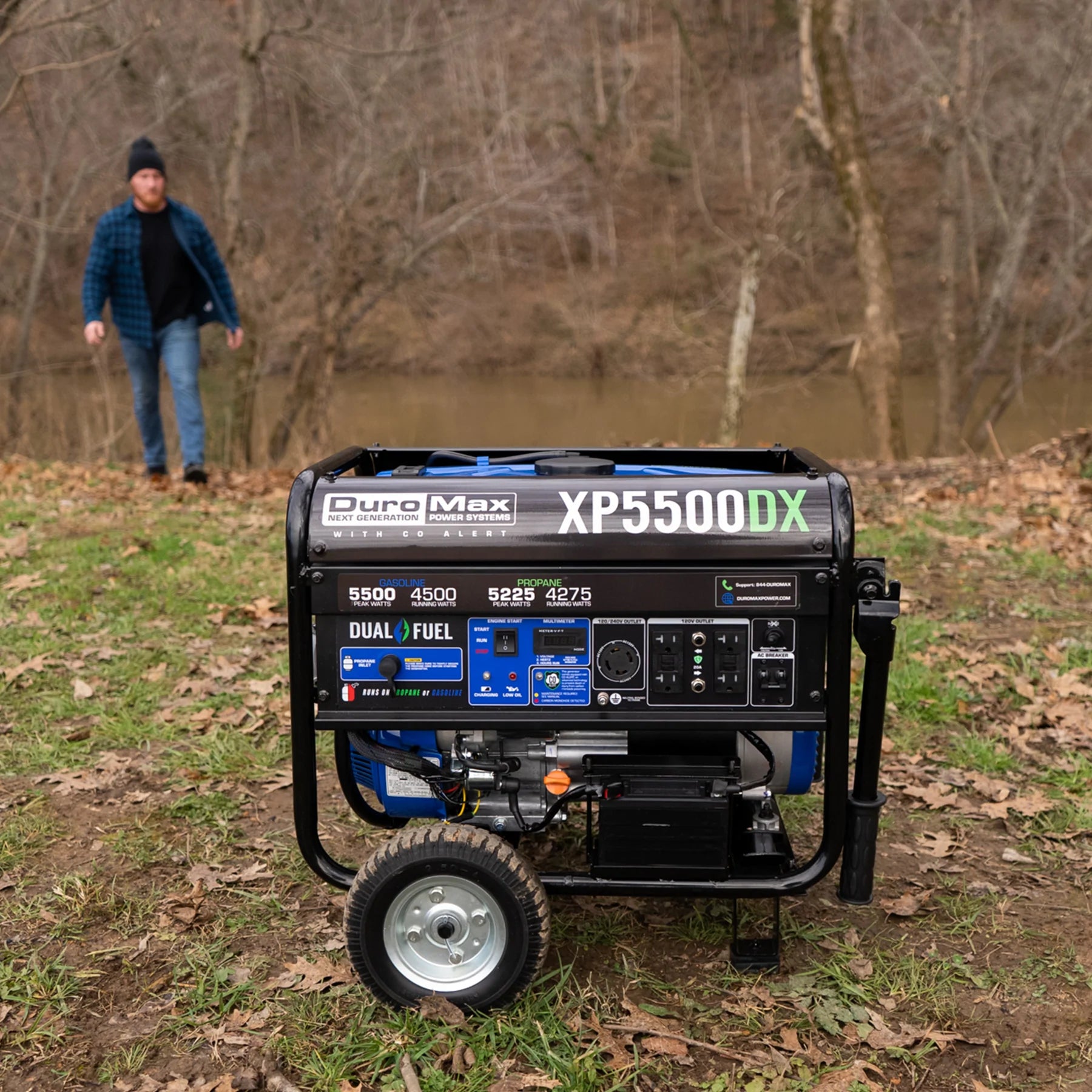

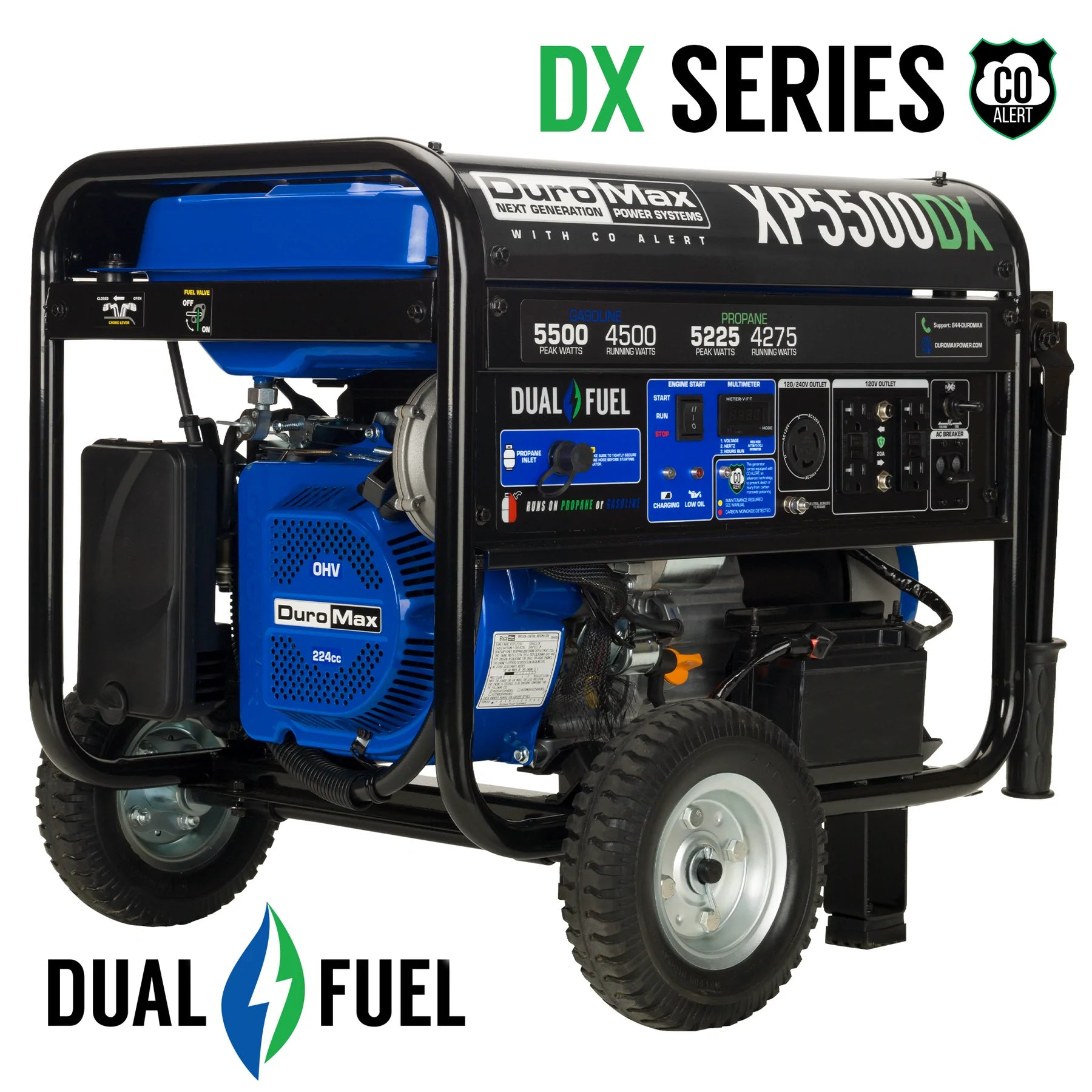

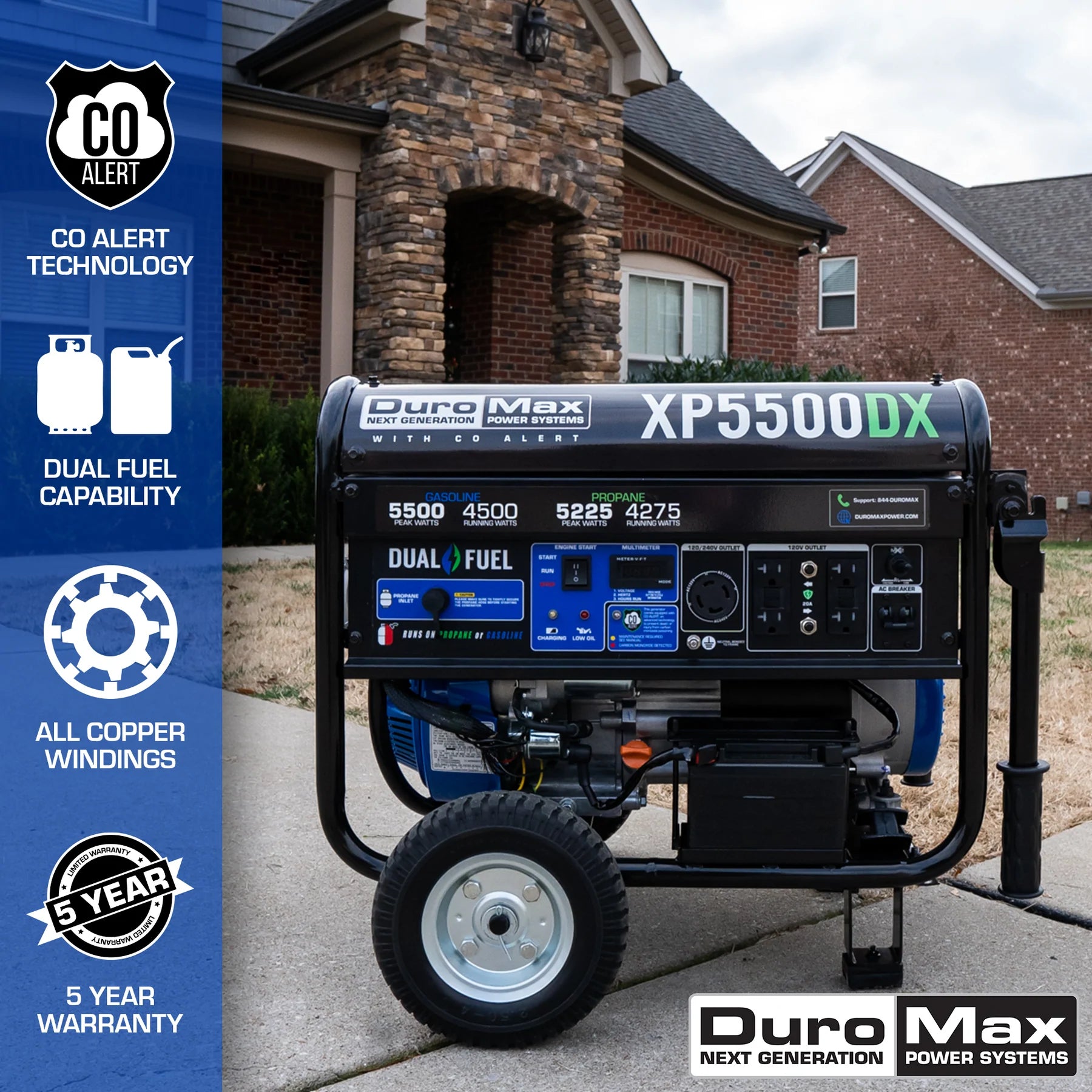

DuroMax XP5500DX 5,500-Watt/4,500-Watt 224cc Electric Start Dual Fuel Portable Generator w/ CO Alert
Style : XP5500DX

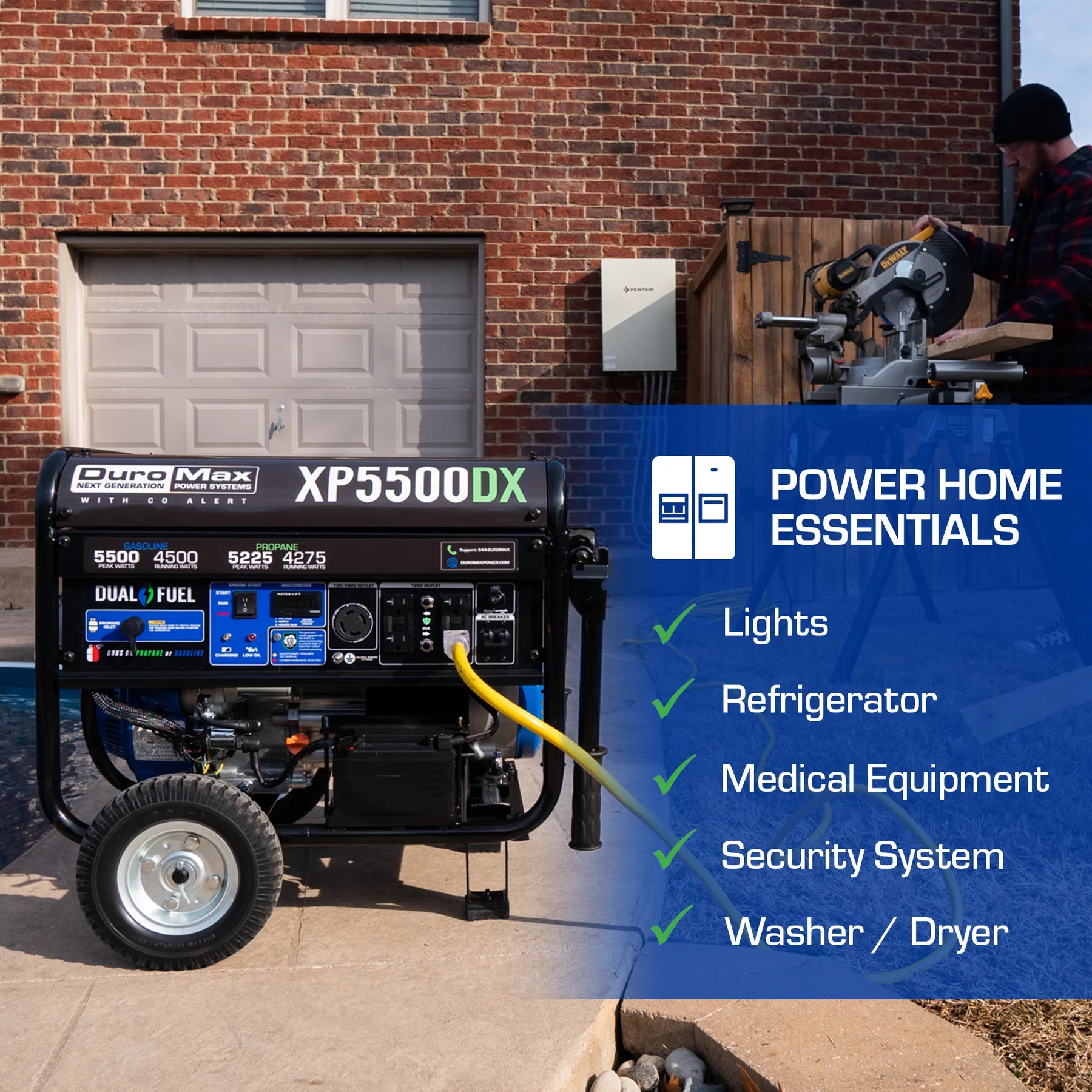

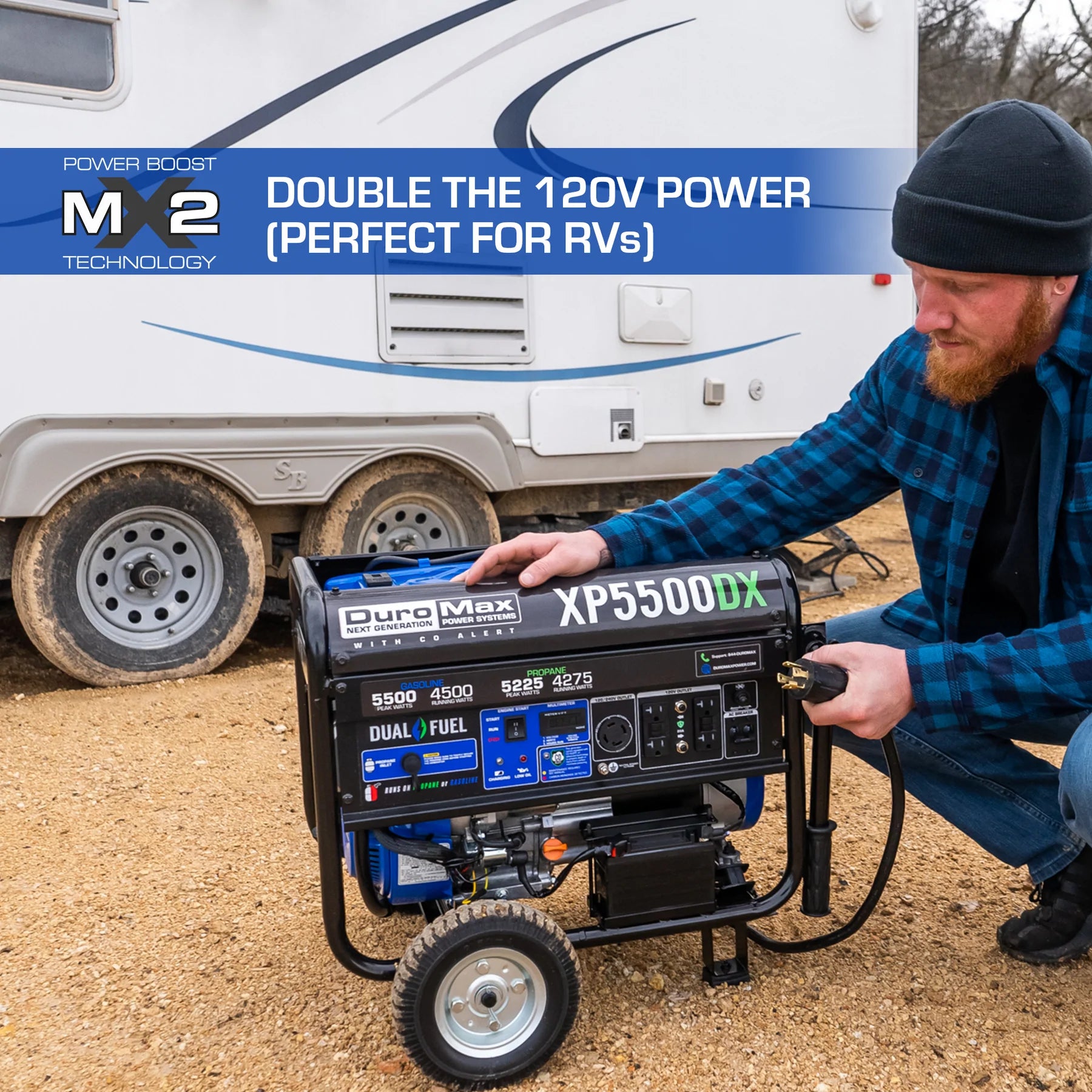

Our XP5500DX packs a punch with 5,500 peak watts and 4,500 running watts of compact Dual Fuel power. Powered by our 224cc DuroMax engine, this generator is excellent for camping, RVs, power on the jobsite, and will run various household essentials such as lights and appliances when the power goes out.

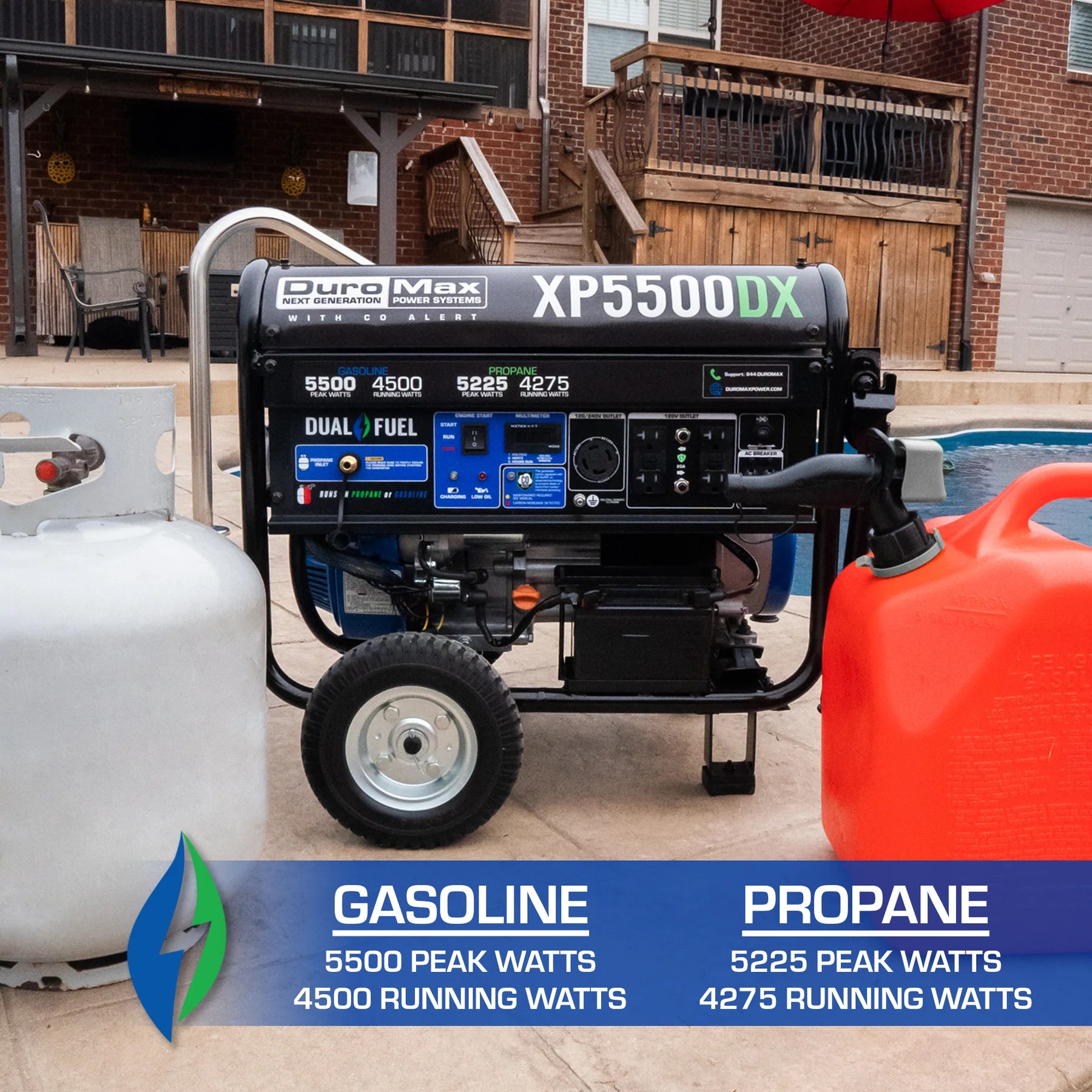

| Gasoline |
| Peak Wattage |
5,500 |
| Running Wattage |
4,500 |
| Running Amperage at 120V |
37.50 |
| Running Amperage at 240V |
18.75 |
| Runtime at 25% Load |
19 |
| Runtime at 50% Load |
9 |
| Propane |
| Peak Wattage |
5,225 |
| Running Wattage |
4,275 |
| Running Amperage at 120V |
35.63 |
| Running Amperage at 240V |
17.81 |
| Runtime at 25% Load |
15 |
| Runtime at 50% Load |
8 |
| Engine & Emission Specifications |
| Engine Manufacturer |
DuroMax Power Equipment |
| Engine Type |
4-Stroke |
| Valve Type |
OHV |
| Engine Cooling Type |
Forced Air |

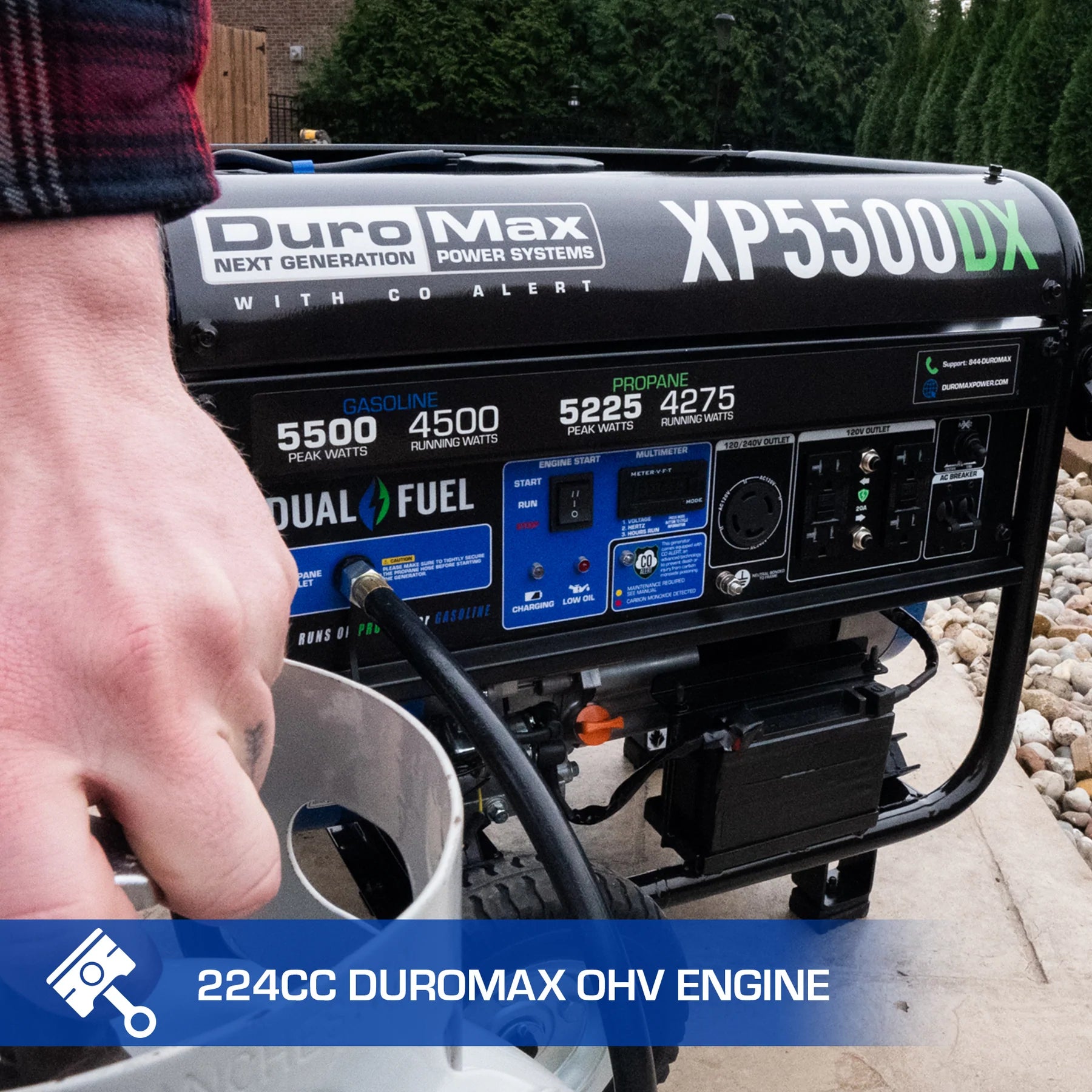

| Engine Size |
224cc |
| Engine Speed |
3600 RPM |
| Starting Type |
Rocker Switch |
| Electric Start |
Yes |
| Recoil Start |
Yes |
| Fuel Delivery System |
Carburetor |
| Fuel Types |
Gasoline and Propane |
| Oil Cooling Type |
Splash |
| Recommended Oil |
10W-30 |
| Recommended Oil Types |
Blended, Conventional, or Synthetic |
| Oil Capacity |
20.3 fluid oz |
| Suggested Propane Tank Size |
20 lbs. minimum |
| Automatic Low Oil Shutdown |
Yes |
| Cast Iron Sleeve |
Yes |
| Bearing Type |
Stainless Steel Ball Bearing |

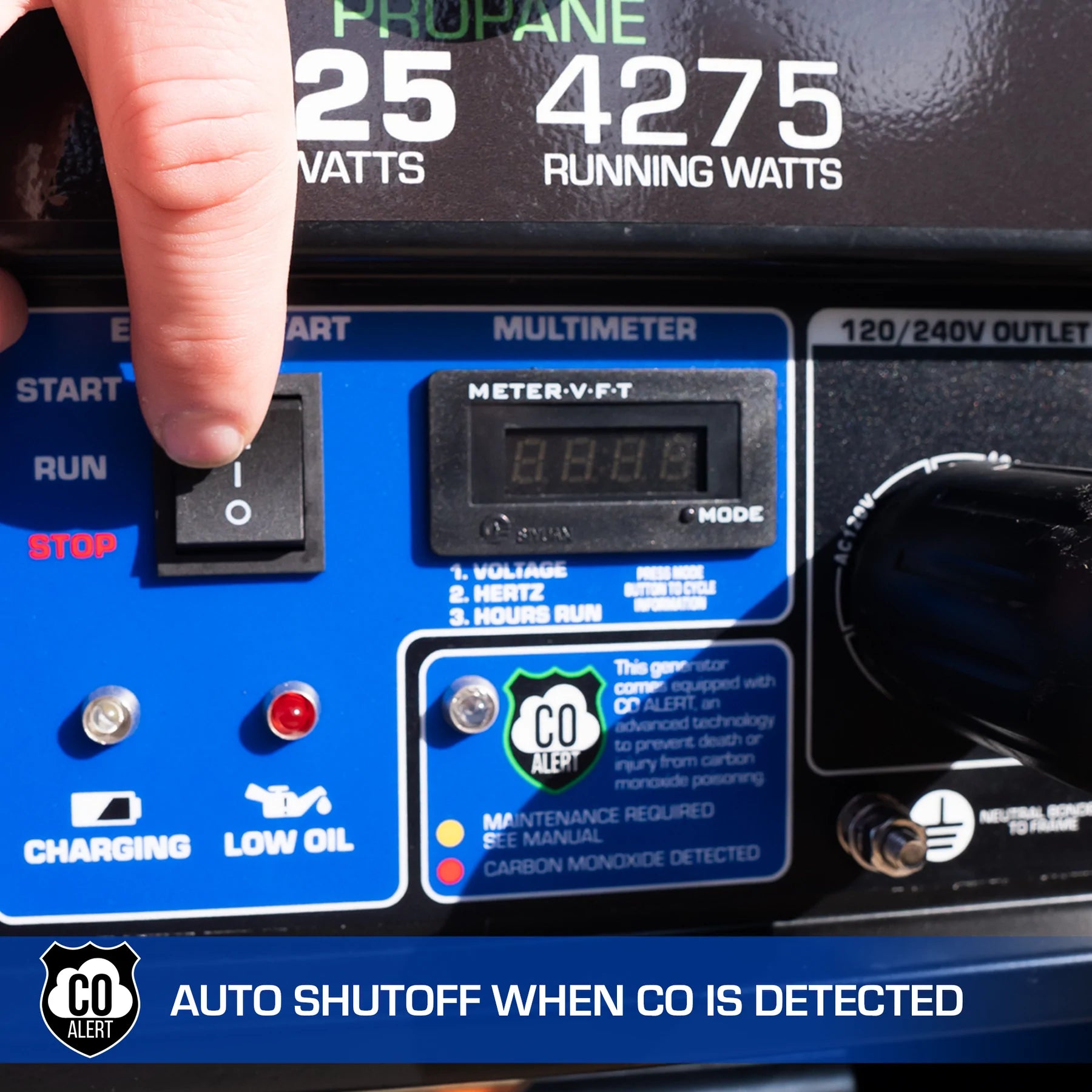

| CO Sensor Shutdown |
Yes |
| EPA Certified |
Yes |
| CARB Certified |
Yes |
| 50 State Emissions |
Yes |

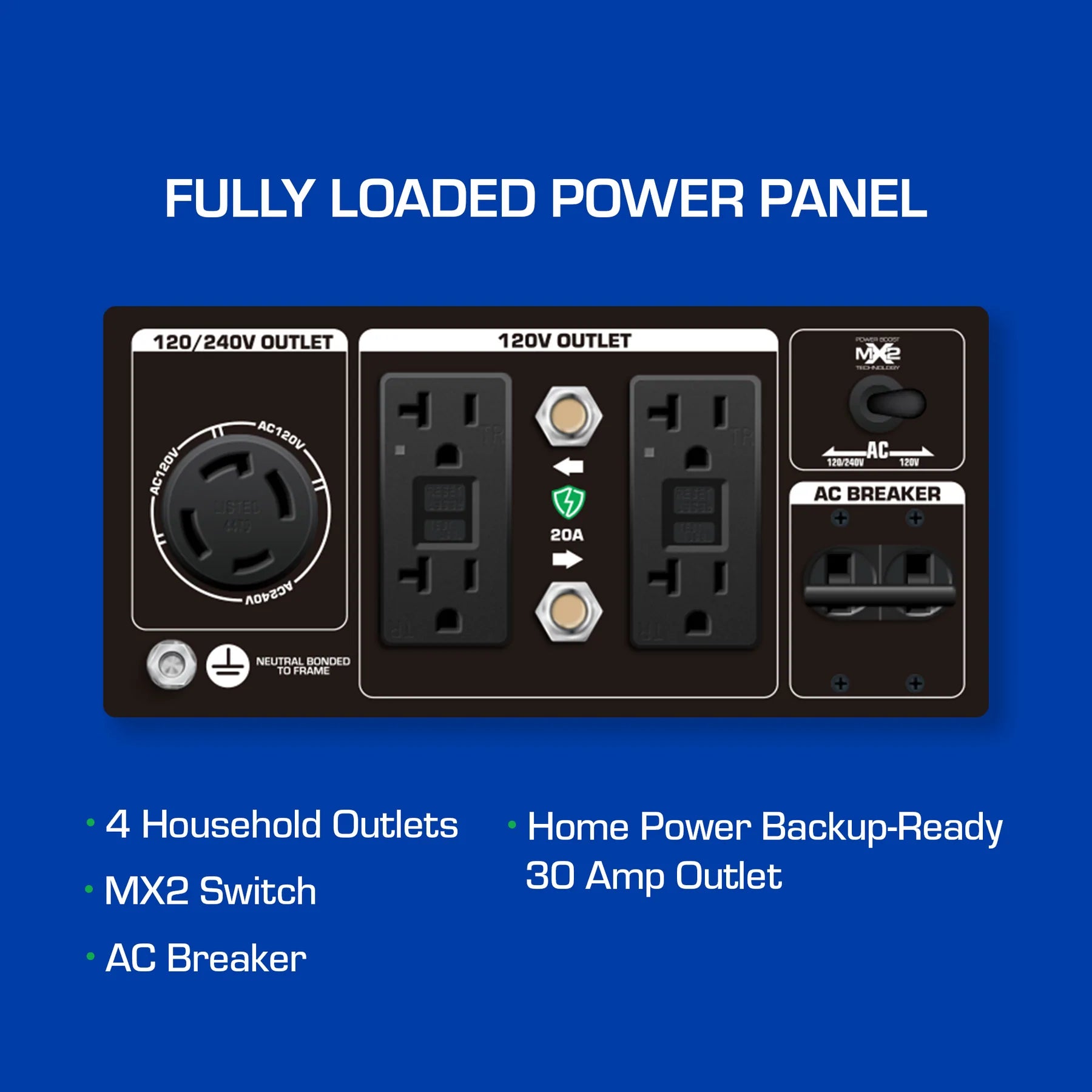

| Panel Specifications |
| GFCI Outlets |
Yes |

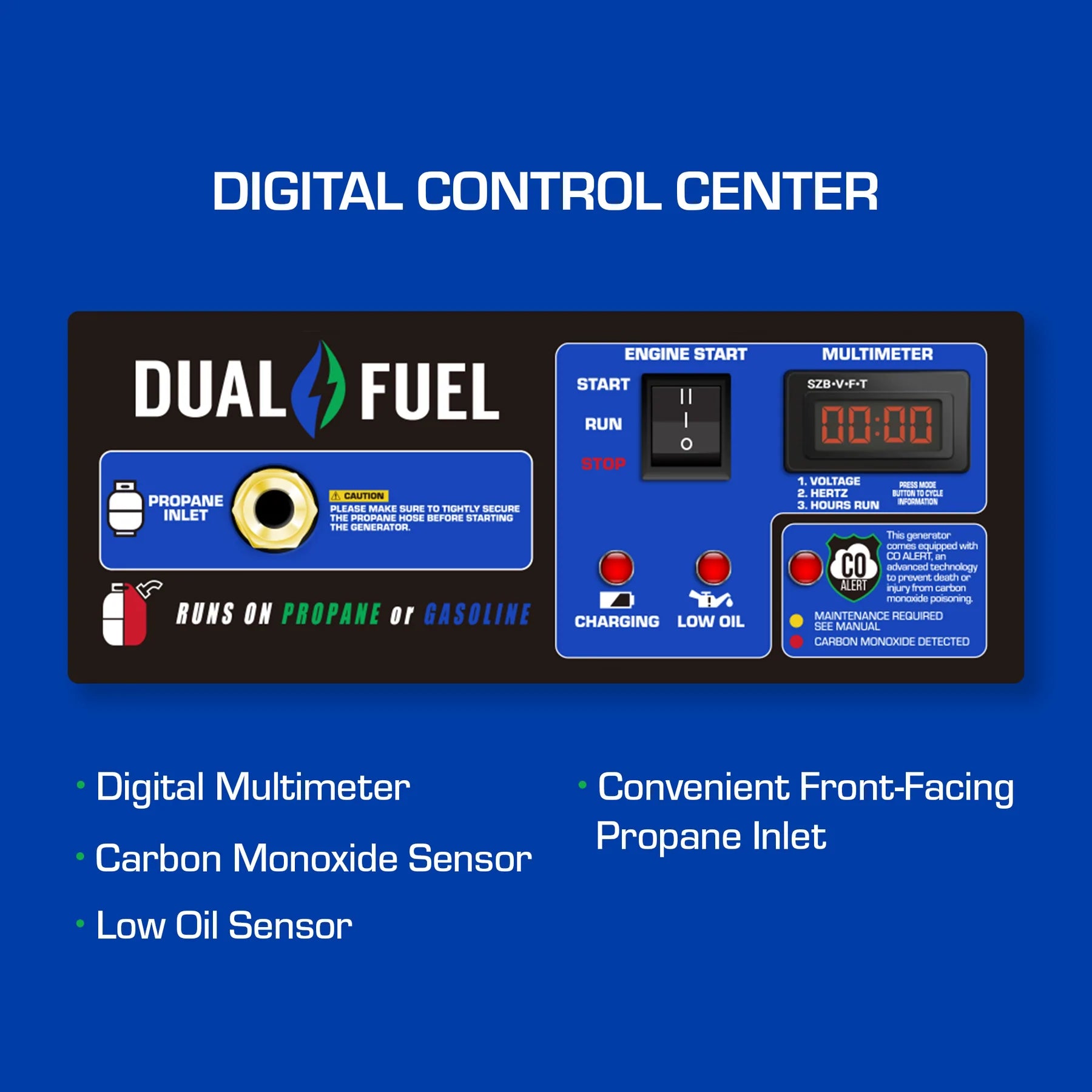

| Volt Meter |
Digital |
| Hour Meter |
Yes |
| 5-20R |
4 |
| L14-30R |
1 |
| Generator Specifications |
| Manufacturer |
DuroMax Power Equipment |
| Part # |
XP5500DX |
| Voltage |
120/240 Volts |
| Frequency |
60 Hertz |
| GFCI Outlets |
Yes |
| Propane Hose & Regulator |
Included |

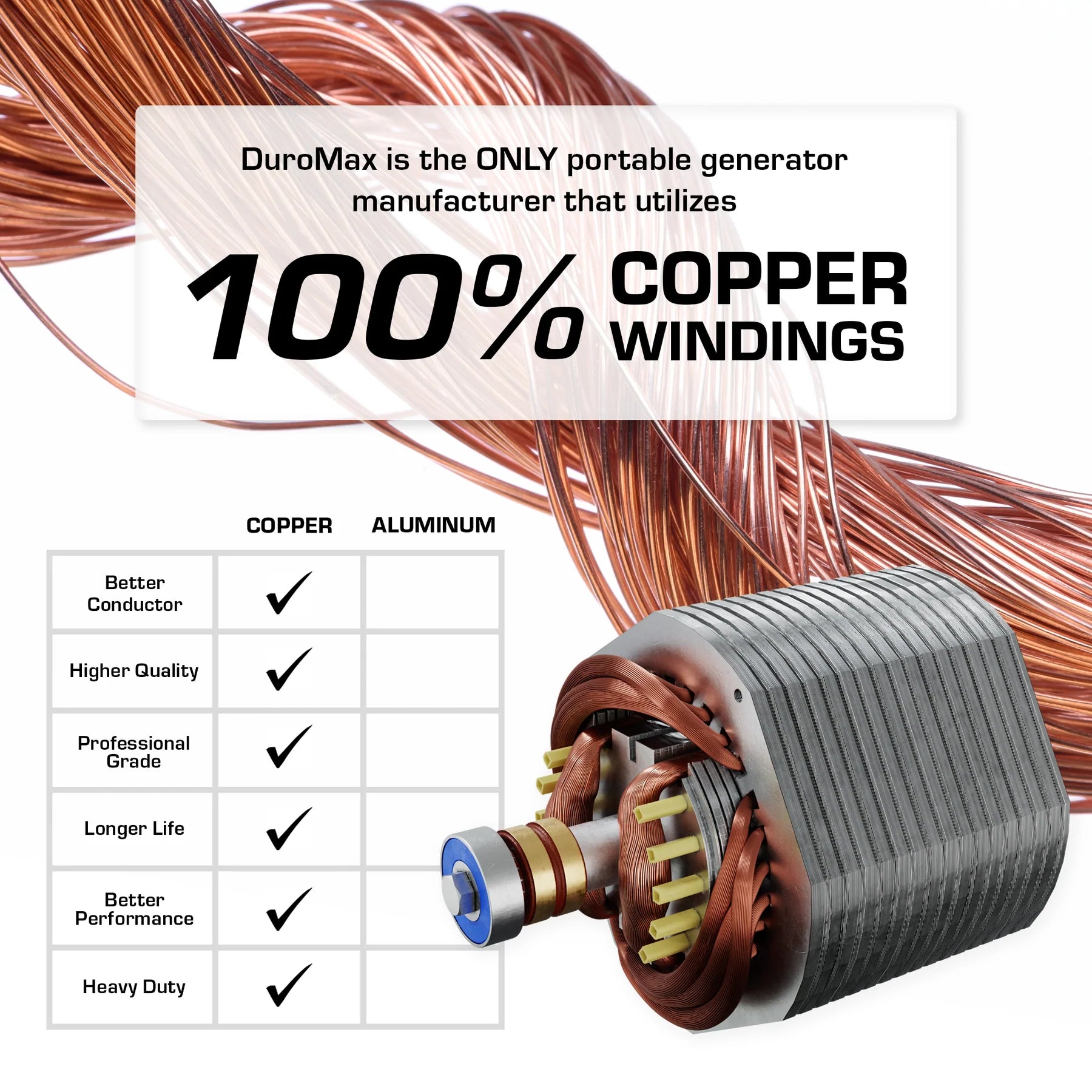

| Winding Material |
100% Copper Windings |
| Automatic Voltage Regulator |
Yes |
| Battery Type |
12V SLA |
| Battery Included |
Yes |
| RV Ready |
Yes |
| Home Backup Ready |
Yes |
| Fuel Tank Capacity Gasoline |
4 Gallons |
| Fuel Gauge |
Yes |

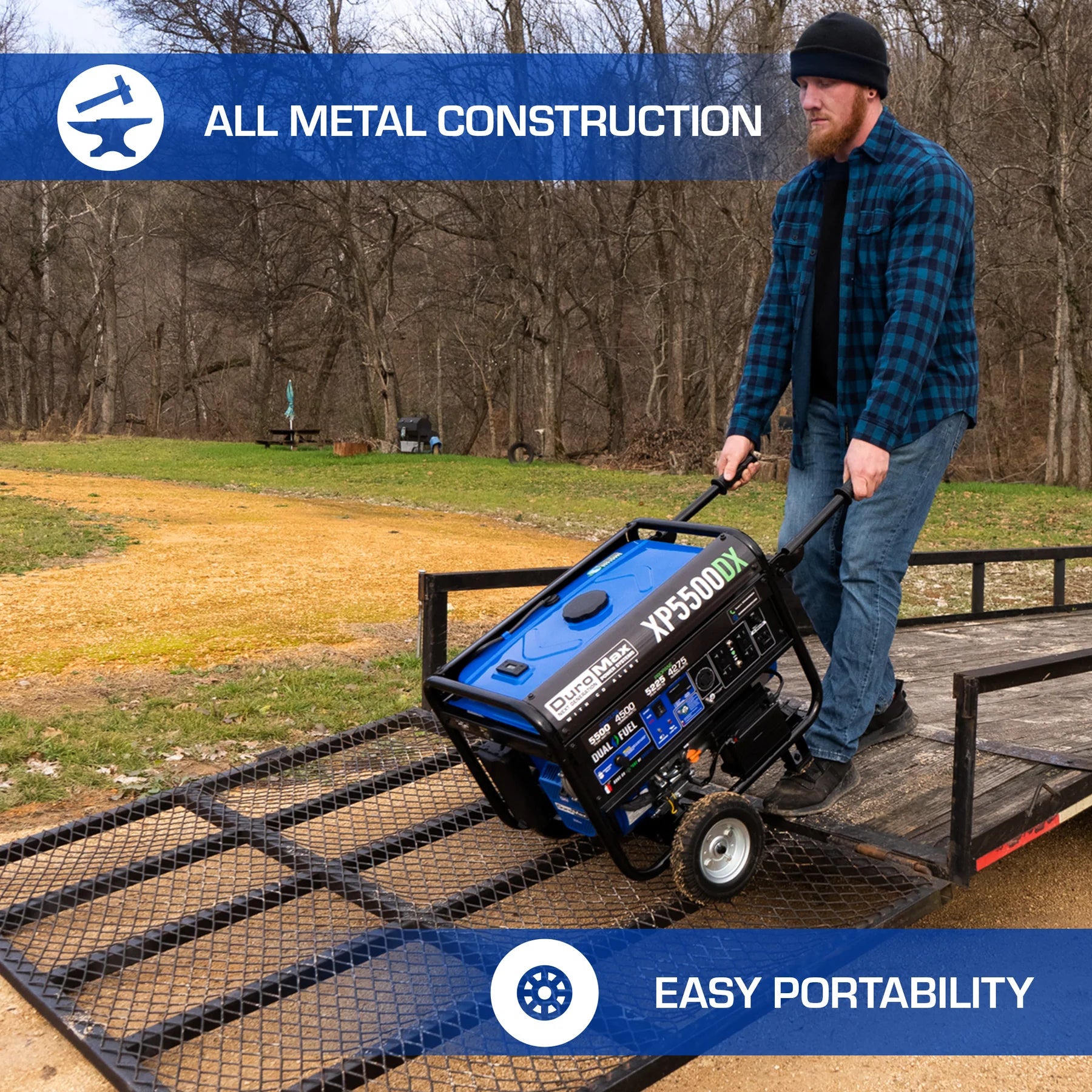

| All Metal Construction |
Yes |
| Product Dimensions |
25"-Long x 23"-Wide x 22"-High |
| Product Dry Weight |
128-lbs |
| Product Weight |
135-lbs |
| Volume (db) |
69 dB |
| UPC |
811640016562 |
| Warranty |
5 Year |

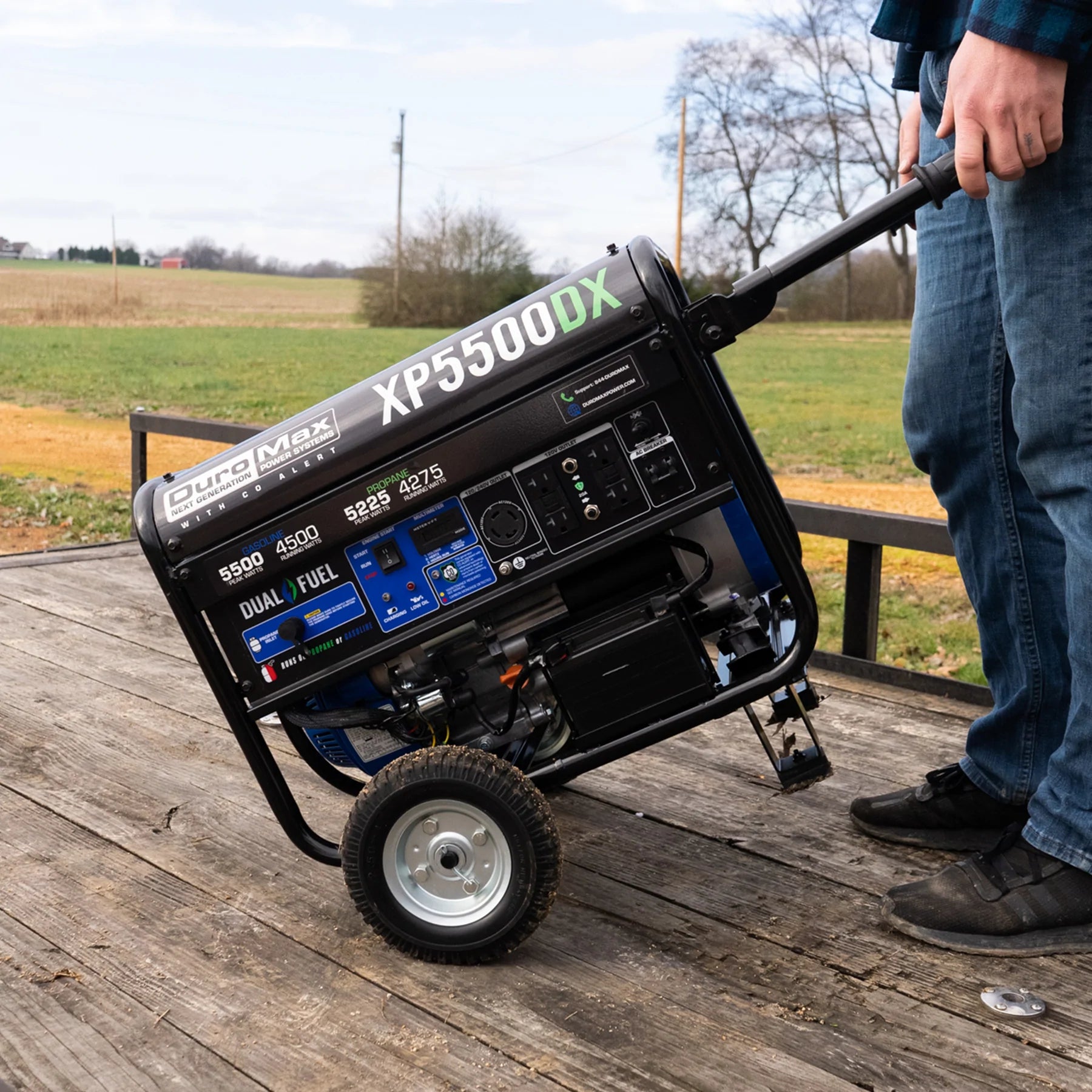

| Wheel & Handle Kit |
Included |
| Wheel Type |
Metal Hub |
| Wheel Diameter |
8-Inches |
| What's in the Box? |
XP5500DX Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, Propane Regulator, and Owners Manual |
Support
Warranty Information
DuroMax stands behind this Generator with a 5 Year parts and technical service warranty. Our USA based teams are available to help walk-through, troubleshoot or diagnose. Nationwide service centers fix any issues - DuroMax has you covered!
